CompilerV0

Description

The CompilerV0 environment is designed to simulate the task of quantum gate compilation for a single-qubit system. It is based on the QuantumEnv base class. The agent’s goal is to sequentially apply quantum gates to approximate a randomly chosen target unitary operation from the special unitary group SU(2). This mimics a quantum compilation problem where one attempts to rewrite a quantum operation in terms of a limited gate set.

At each step, the agent applies one of several predefined single-qubit gates, evolving the current circuit unitary. The agent receives a reward proportional to the fidelity between the evolved unitary and the target unitary, and the episode terminates when the agent either reaches a sufficiently high fidelity or exhausts the maximum step limit.

The environment includes a rendering mode that visualizes the difference matrix between the target and the current unitary as a heatmap evolving over time.

Action Space

The action space is discrete, where each action corresponds to applying a quantum gate from a fixed set of single-qubit operations:

Num	Action	Description
0	`H`	Hadamard gate
1	`X`	Pauli-X gate
2	`Y`	Pauli-Y gate
3	`Z`	Pauli-Z gate
4	`S`	Phase gate
5	`SDG`	Conjugate transpose of Phase gate
6	`T`	π/8 gate
7	`TDG`	Conjugate transpose of π/8 gate
8	`RX_pi_2`	X-axis rotation by π/2
9	`RX_pi_4`	X-axis rotation by π/4
10	`RY_pi_2`	Y-axis rotation by π/2
11	`RY_pi_4`	Y-axis rotation by π/4
12	`RZ_pi_2`	Z-axis rotation by π/2
13	`RZ_pi_4`	Z-axis rotation by π/4

Observation Space

The observation is a flattened representation of the current unitary matrix, expressed in terms of its real and imaginary parts. This results in an 8-dimensional vector:

Num	Observation Component	Range
0-3	Real part of unitary	[-1, 1]
4-7	Imag part of unitary	[-1, 1]

This encodes the full (2 \times 2) complex unitary matrix.

Rewards

The reward is based on the average gate fidelity between the target unitary U_{target} and the current unitary U. Specifically:

\(reward = \frac{1}{2} \left| \mathrm{Tr}(U_{target}^\dagger U) \right|\)

A higher reward indicates closer alignment with the target unitary.
The episode terminates early if the reward exceeds reward_tolerance (default: 0.98).

Starting State

At the start of each episode:

The circuit unitary is initialized as the identity matrix ( I ).
The target unitary is specified by the user at initialization. (By default, this can be drawn from a random U3(θ, φ, λ) decomposition in SU(2).)

The initial observation corresponds to the identity matrix.

Episode End

The episode ends if one of the following occurs:

Termination: The fidelity between the current and target unitary exceeds the reward tolerance (reward > 0.98 by default).
Truncation: The number of steps exceeds the maximum episode length (max_steps, default: 30).

Rendering

The environment supports visualization of the compilation process:

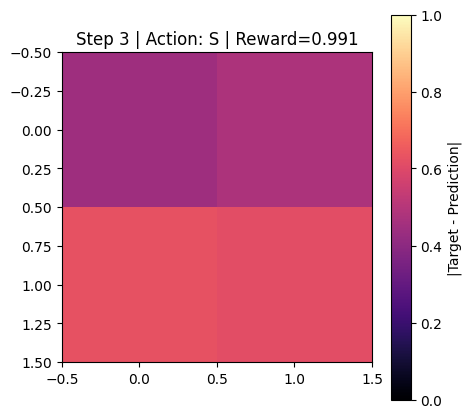

A heatmap is drawn showing the magnitude of the difference matrix: \(|U_{target} - U|\) at each step.
The heatmap updates dynamically, and the plot title displays the step number, last applied gate, and reward.

The animation can be saved as an MP4 file or displayed interactively.

Arguments

``target`` (np.ndarray): The target (2 \times 2) unitary matrix to compile towards.
``max_steps`` (int, default=30): Maximum number of steps per episode.
``reward_tolerance`` (float, default=0.98): Fidelity threshold for early termination.
``ffmpeg`` (bool, default=False): If True, uses FFmpeg for saving animations; otherwise uses Pillow (GIF).

[1]:

## Example:


import numpy as np
from qrl.env.core.utils import RY, RZ
from qrl.env import CompilerV0

theta, phi, lam = np.random.uniform(0, 2*np.pi, 3)
target = (RZ(phi) @ RY(theta) @ RZ(lam))  # general SU(2)

# Initialize environment with 1 qubit
# set ffmpeg=True if you have ffmpeg installed to save as mp4, or ffmpeg=False to save as gif
env = CompilerV0(target_unitary=target, max_steps=30, reward_tolerance=0.98, ffmpeg=False)

# Reset
obs, _ = env.reset()
print("Initial Circuit State:", obs)

for _ in range(env.max_steps):
    action = env.action_space.sample()
    obs, reward, done, _ = env.step(action)
    print(f"After {action} action -> Observation:", obs)
    print("Reward:", reward, "Done:", done)

    if done:
        break

# Render Bloch sphere
env.render(save_path_without_extension="compilerV0")

Initial Circuit State: [1. 0. 0. 1. 0. 0. 0. 0.]
After 0 action -> Observation: [ 0.70710677  0.70710677  0.70710677 -0.70710677  0.          0.
  0.          0.        ]
Reward: 0.03731180711998387 Done: False
After 11 action -> Observation: [-0.70710677  0.70710677  0.70710677  0.70710677  0.          0.
  0.          0.        ]
Reward: 0.6138573921195891 Done: False
After 4 action -> Observation: [-0.70710677  0.70710677  0.          0.          0.          0.
  0.70710677  0.70710677]
Reward: 0.9913020036237119 Done: True
